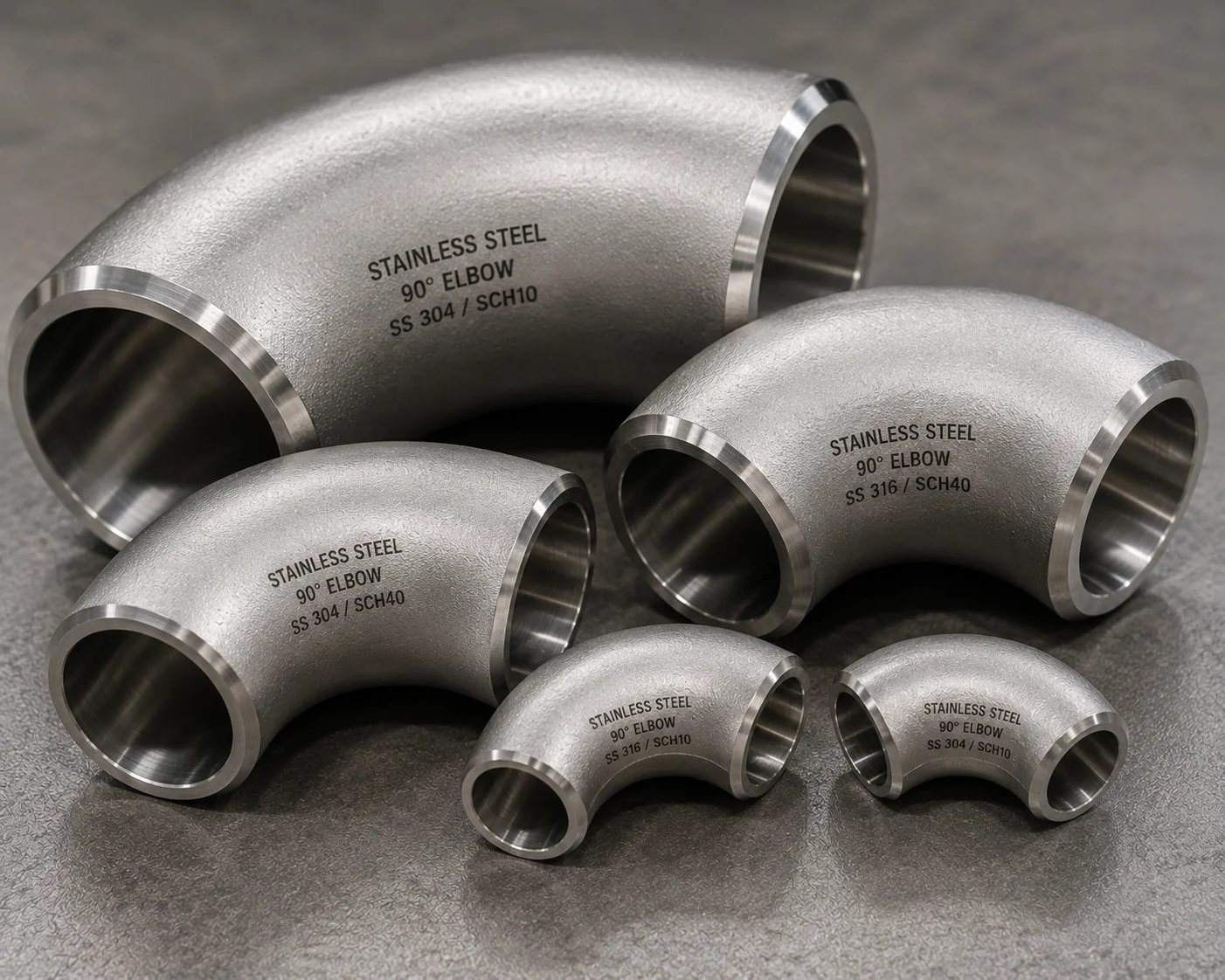

Manufacturing high-quality ASME B16.9 buttweld elbows and ASME B16.11 forged socket weld & threaded elbows in SS 304, 304L, 316L, 321, Duplex 2205, and Nickel Alloys with EN 10204 3.1 MTC.
| NPS Size | Outside Diameter | LR Center-to-End (90°) | SR Center-to-End (90°) | Sch 40 Wall | Sch 80 Wall |
|---|---|---|---|---|---|
| 1/2" | 21.3 mm | 38.1 mm | 21.3 mm | 2.77 mm | 3.73 mm |
| 3/4" | 26.7 mm | 38.1 mm | 26.7 mm | 2.87 mm | 3.91 mm |
| 1" | 33.4 mm | 38.1 mm | 33.4 mm | 3.38 mm | 4.55 mm |
| 1-1/2" | 48.3 mm | 57.2 mm | 48.3 mm | 3.68 mm | 5.08 mm |
| 2" | 60.3 mm | 76.2 mm | 60.3 mm | 3.91 mm | 5.54 mm |
| 3" | 88.9 mm | 114.3 mm | 88.9 mm | 5.49 mm | 7.62 mm |
| 4" | 114.3 mm | 152.4 mm | 114.3 mm | 6.02 mm | 8.56 mm |
| 6" | 168.3 mm | 228.6 mm | 168.3 mm | 7.11 mm | 10.97 mm |
| 8" | 219.1 mm | 304.8 mm | 219.1 mm | 8.18 mm | 12.70 mm |
Delivering precision-engineered flanges, pipes, and forged steel components designed for strength, durability, and performance in critical high-pressure industrial applications.
