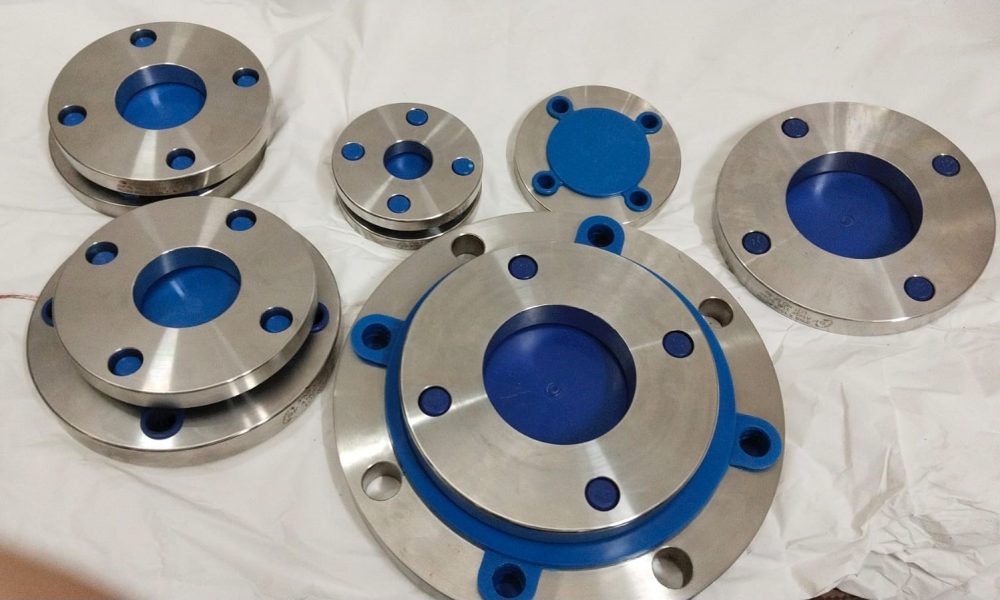

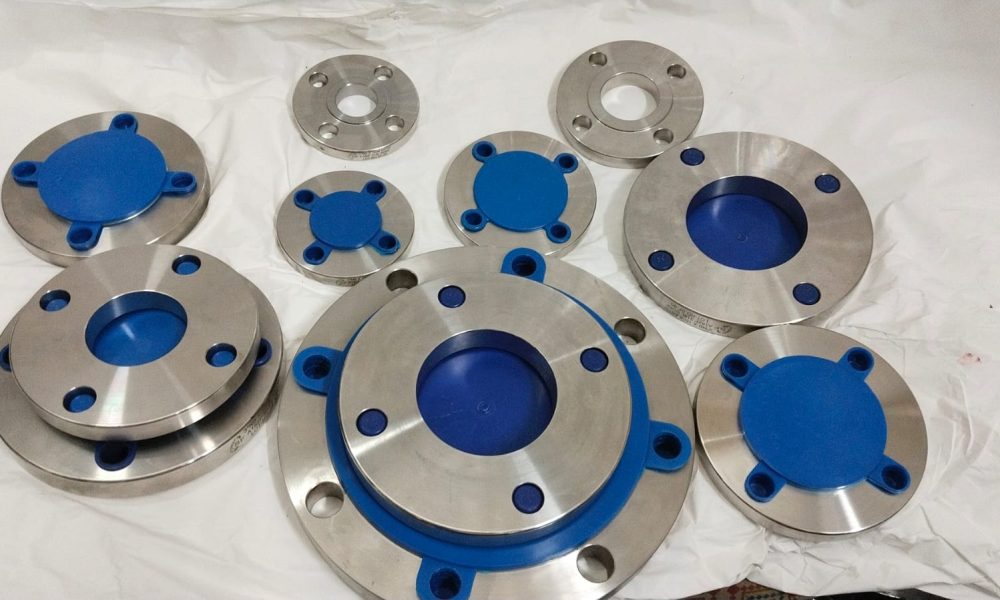

Plate Flange
Plate Flanges are simple flat flanges manufactured by cutting from steel plates. These flanges do not have a hub and are commonly used in low-pressure and non-critical applications. Due to their simple design and cost-effectiveness, Plate Flanges are widely used in water pipelines, chemical plants, and general industrial piping systems.
SAKSHI FORGE offers high-quality Plate Flanges manufactured using precision cutting and machining processes. These flanges are suitable for applications where pressure and temperature requirements are relatively low.
Plate Flanges are easy to install and provide a reliable connection when used with proper gaskets and bolting. They are available in various sizes, thicknesses, and pressure ratings depending on the application requirements.
Our Plate Flanges are manufactured according to international standards and undergo strict quality checks to ensure dimensional accuracy and durability.
Type | Plate Flange |
Standards | ASME B16.5, DIN, EN |
Size | ½” NB to 48” NB |
Pressure Ratings | PN6, PN10, PN16 |
Face Type | Flat Face (FF) |
Manufacturing | Plate Cut |
Surface | Anti-rust Paint, Galvanized |
Stainless Steel
ASTM A240 F304, F316
Carbon Steel
IS 2062, ASTM A36
Alloy Steel
ASTM A387
Size (NB) | OD (mm) | Thickness (mm) | Bolt Circle (mm) | No. of Holes |
2” | 152 | 12 | 120.7 | 4 |
4” | 229 | 16 | 190.5 | 8 |
6” | 279 | 20 | 241.3 | 8 |
8” | 343 | 22 | 298.5 | 8 |
10” | 406 | 25 | 362 | 12 |
